- Capable of receiving all wavelength ranges of visible light
- 01
- Easy to detect even minor color differences
- 02
- Optional detection distance of 30~500mm
- 03
- Response time up to 50 μs
- 04

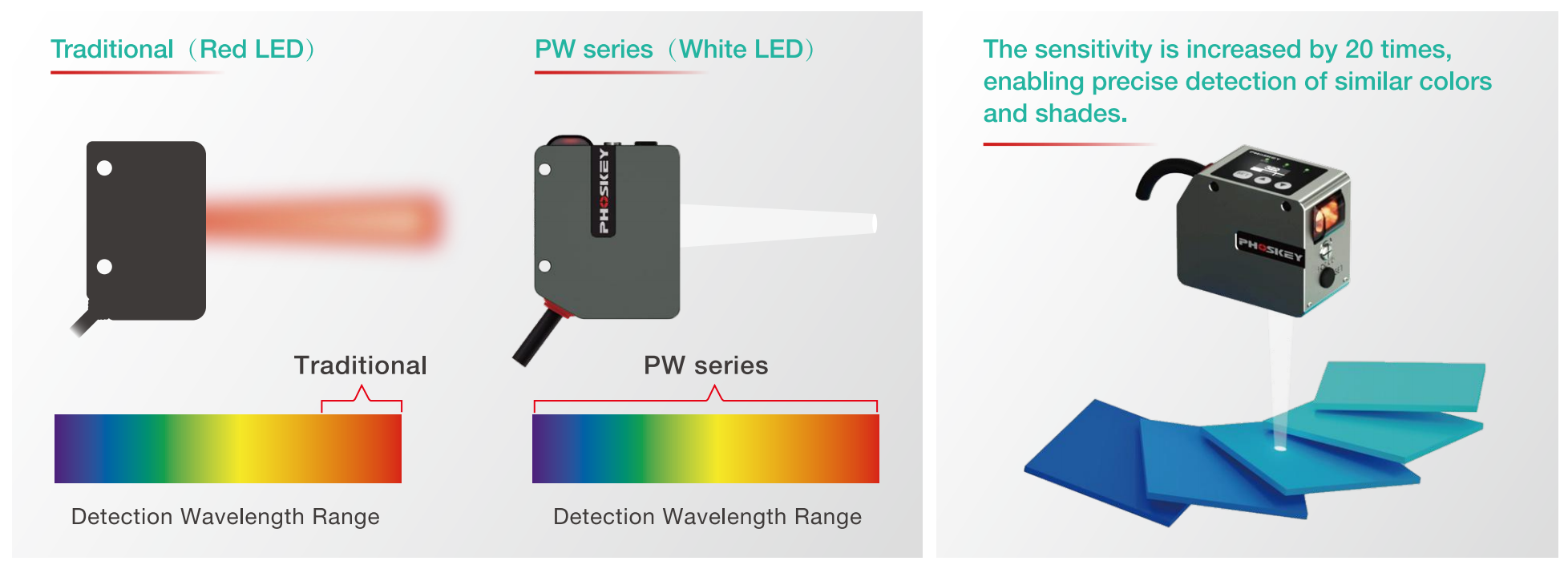

The traditional red LED photoelectric sensor can only detect the intensity difference of light and can only receive light in the red wavelength range. PW series adopts white LED light source, which can receive all wavelength ranges of visible light. It can be detected according to the appearance color of the detected object, so as to accurately detect the subtle color difference.

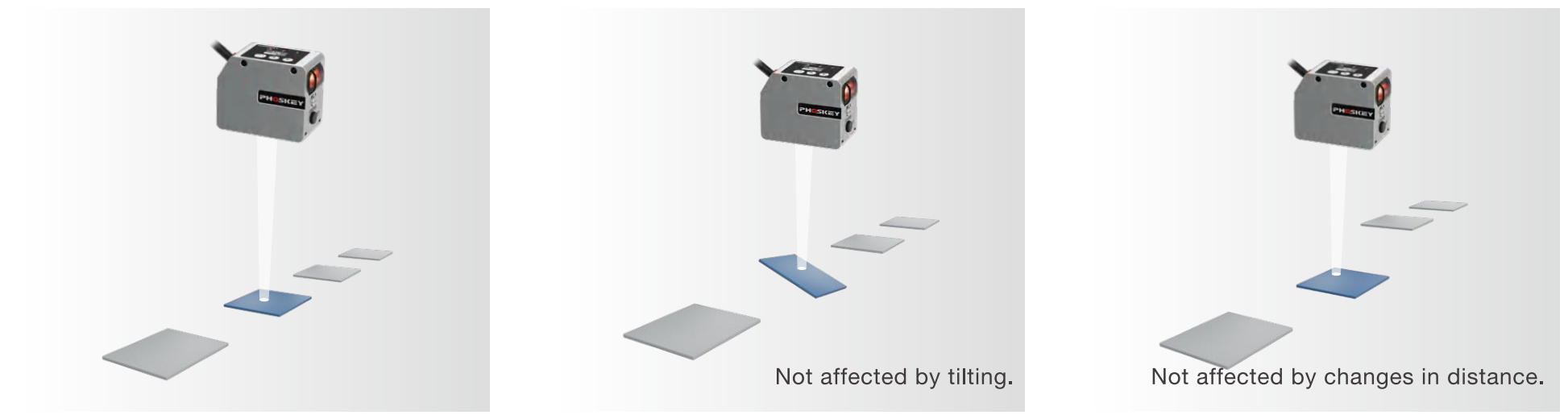

Better anti-jamming performance
PW2 series has stronger anti-interference function, which can still provide accurate color detection in the environment with large light change or complex background. It also has intelligent adjustment function, which can automatically optimize the detection parameters according to the environmental changes, further improving the accuracy and reliability of the detection.

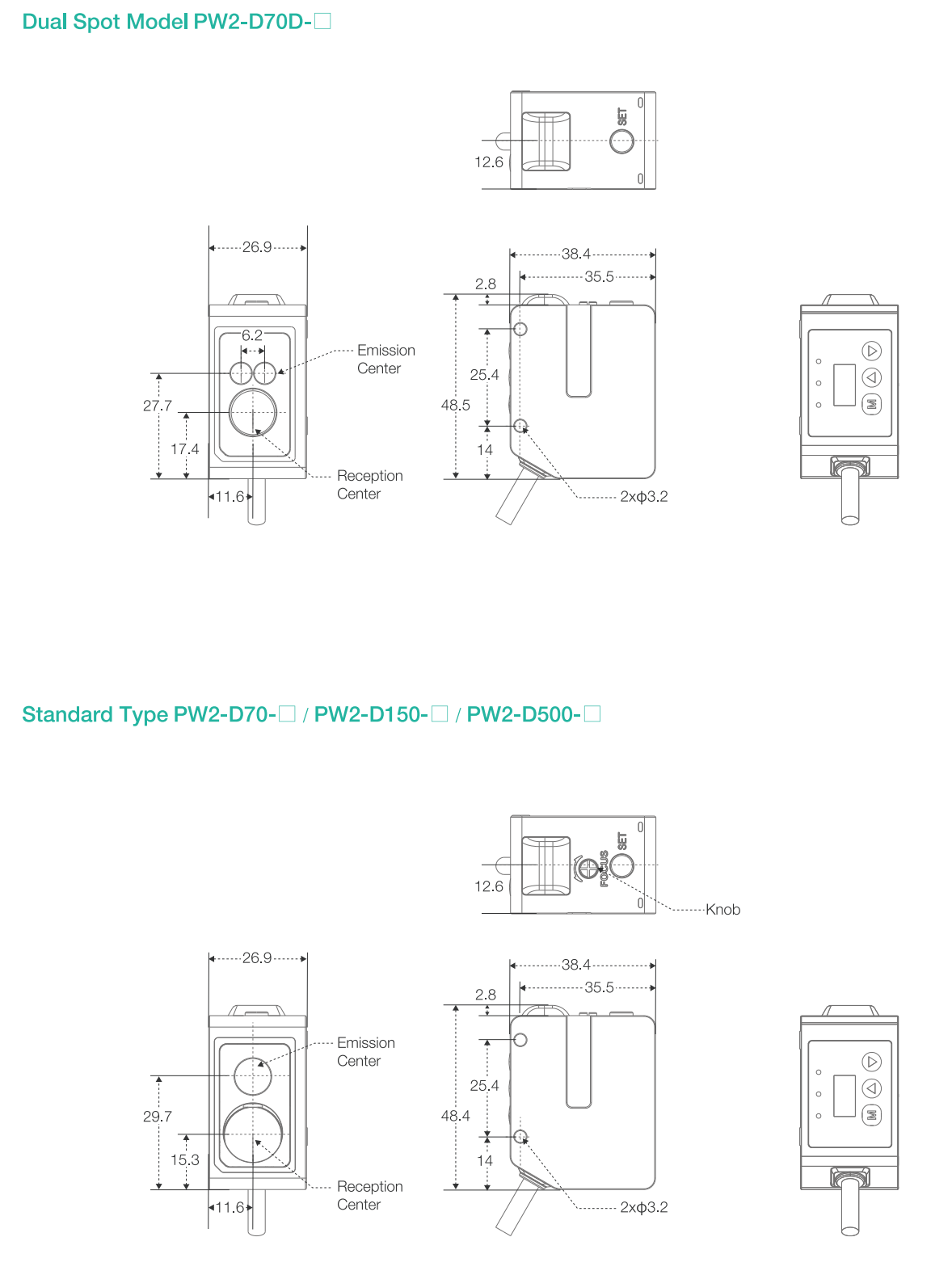

| Type | Dual spot pattern |
Standard type
|
Optical fiber type | |||
|
Model（I/O）
|
PW2-D70D | PW2-D70 | PW2-D150 | PW2-D500 | PW2-DF10 | |
| Model（RS-485） | PW2-D70D-485 | PW2-D70-485 | PW2-D150-485 | PW2-D500-485 | PW2-DF10-485 | |
| Detection distance | 30 - 70 mm | 30 - 70 mm | 70 - 150 mm | 150 - 500 mm | Depends on connected fiber optic elements | |
| Minimum spot diameter | At 50mm，about 2×4mm | At 50mm，about Φ7mm | At 100mm，about Φ4.5mm | At 250mm，about Φ11mm At 500mm，about Φ20mm |
||
| Response time | 50µs / 100µs / 200µs / 1ms / 5ms / 10ms / 20ms / 100ms / 500ms | |||||
| Light source | White LED | |||||
| Reduce mutual interference function | Up to 2 sets for different frequency settings | |||||
| Timer | OFF/ON-Delay/OFF-Delay/Single delay | |||||
| Power supply | Supply voltage | 12 ~ 24V DC ±10% Pulsation P-P below 10% | ||||
| Consumption current | At 24V DC below 76mA，At 12V DC below 148mA | At 24V DC below 57mA，At 12V DC below 108mA | At 24V DC 50mA below，At 12V DC below 90mA | |||
|

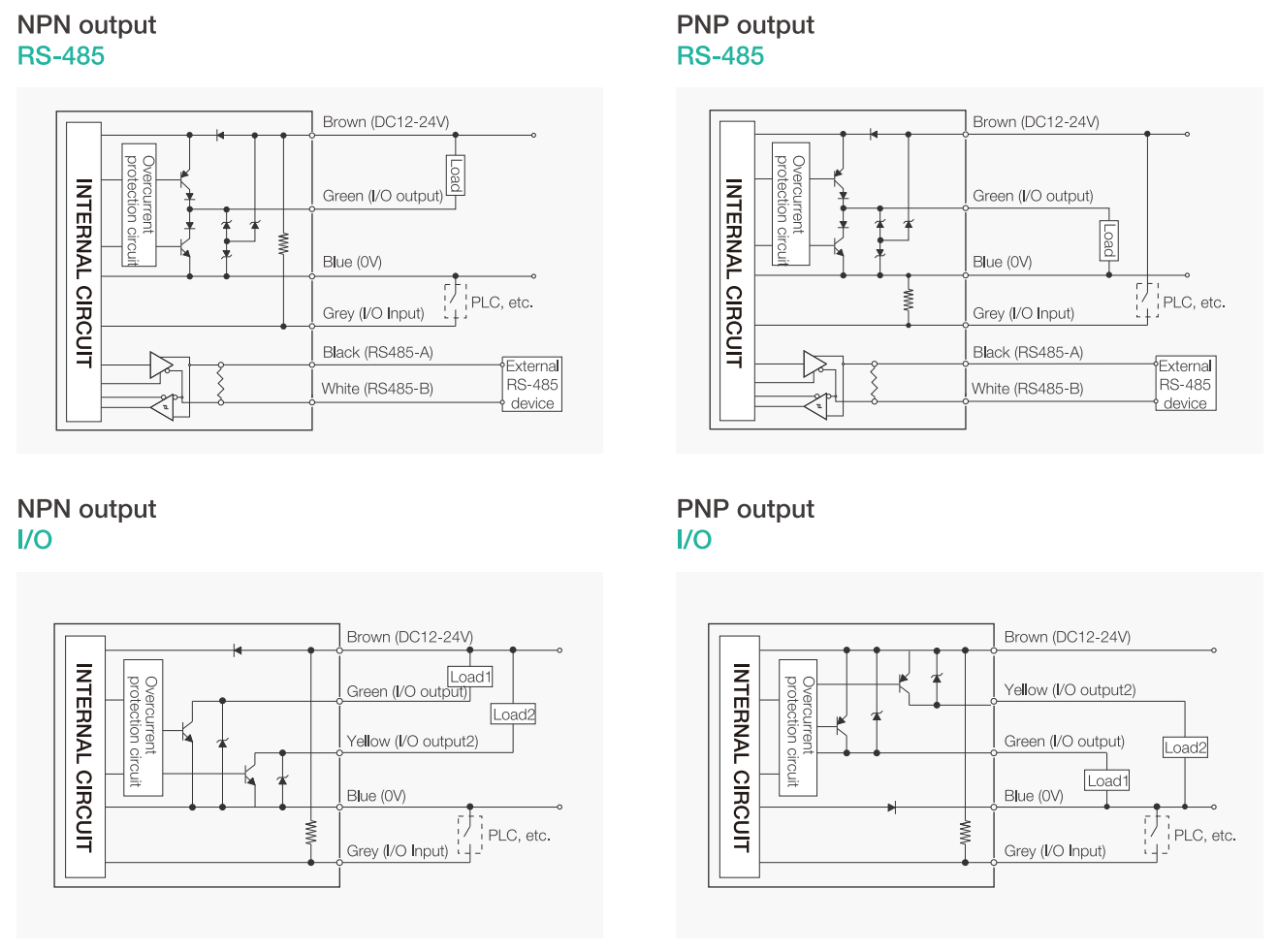

I/O
|
Control output | Dual output，Each channel can be set with NPN/PNP NO / NC | ||||
| External input | Sensitivity setting/project stop switching mode Short-circuit current NPN: below 1mA/PNP: below 2mA |
|||||
| Protection circuit | Power supply reverse connection protection, power surge protection, output overcurrent protection, output surge protection, output reverse connection protection | |||||
| environment resistance |
protection grade
|
IP67（ IEC60529 ） | IP65（ IEC60529 ） | |||
| Service ambient temperature | -20~+50°C（No freeze） | -20~+45°C（No freeze） | ||||
| Operating environment humidity | 35~85%RH（No condensation） | |||||
| Resistant to ambient light | Incandescent lamp：below 10000 lux Sunlight：below 20000 lux | |||||
|
Withstanding voltage
|
AC1000V 1 Minute Between all power connection terminals and enclosure
|
|||||
|
Vibration
|
10~55 Hz Bi-directional amplitude 1.5 mm X、Y、Z direction 2 Hours each | |||||
|
Impact resistance
|
1000 m/s² X、Y、Z direction 6 Times each | |||||
|
material
|
Housing: zinc casting (nickel-chromium plated) Indicator cover: PC， Button: silicone Lens cover: glass Cable Sleeves and Cables: PVC Light dot adjustment dial: SUS304 |
|||||
